Type: ESX60D

70 mm
12,4 mm

The ESX60 is a communicable electronic circuit protector. It is a component of the CPC20 ControlPlex® system. This system consists of the CPC20 bus controller and the modules for power distribution 18plus ControlPlex and ESX60D electronic circuit protector.

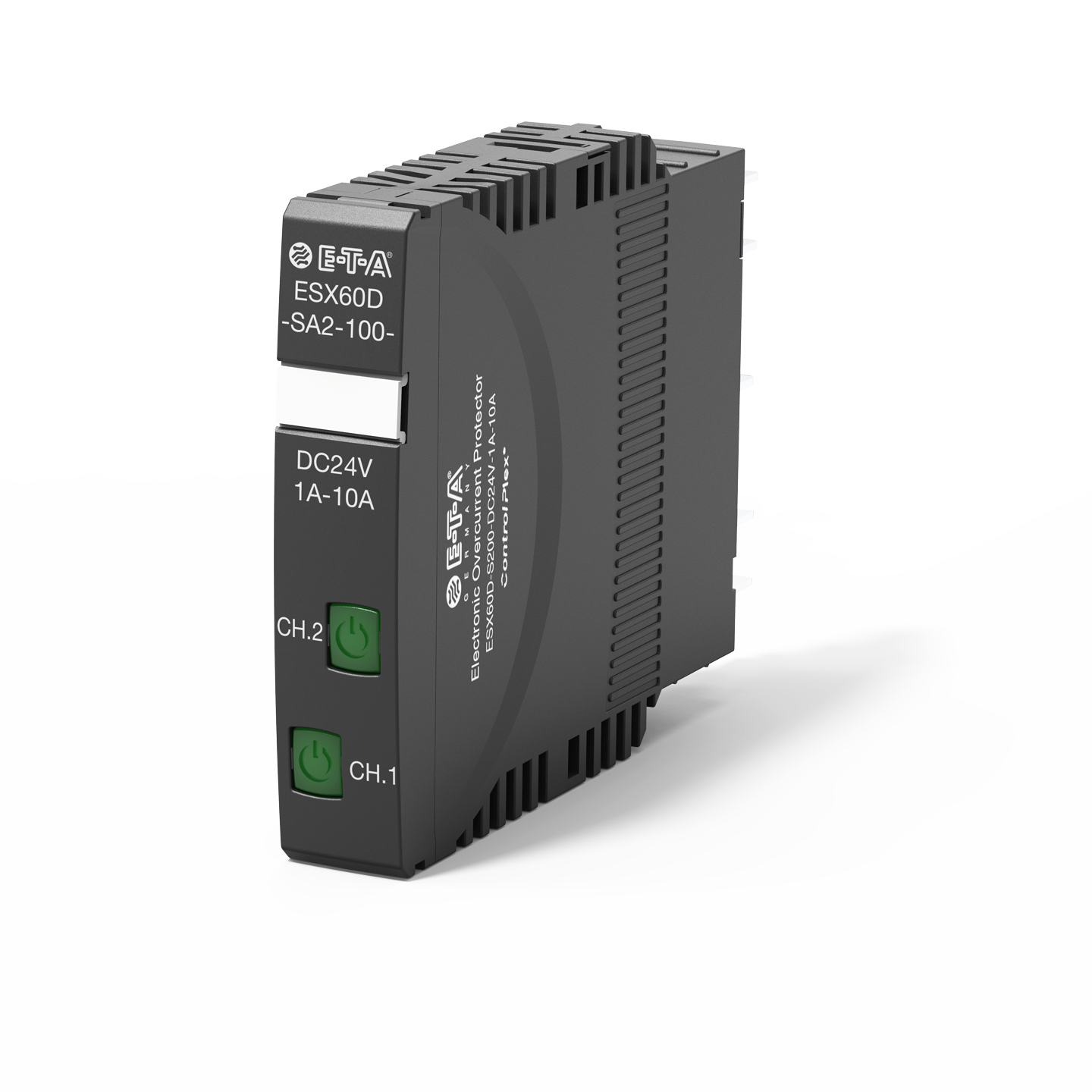

The ESX60D is a smart electronic circuit protector. It offers active current limitation to enable protection also of capacitive and inductive loads. Despite its small width of only 12.5 mm, it provides two channels. The status per channel can be seen via an LED directly on the device. Additionally, the ESX60D transmits status and measuring values via the proprietary device ELBus® first to the CPC20 and from there to the superordinate control unit, as well as to Cloud applications. It is precisely its parameterisability that makes the ESX60D very flexible to use and enables flexible setting of its current ratings and parameters through the integrated web server or the connected programmable logic controllers. Thus, the user can import the relevant information regarding his DC 24 V voltage supply and process it accordingly.

技术参数

工作电压

DC 18 - 30 V

额定电压等级

DC 24 V

额定电流等级 1;2;3;4;5;6;7;8;9;10
负载分断 short circuit: typically 100 ms
overload: typically 3 s
电子限流 typically 1.4 x IN
typically 1.8 x IN
信号输出 Transmitted digitally
状态指示 1 LED green/orange/red
温度范围 0....+60 °C
接线端子
安装方式 On module 18plus-CP
Certificates UL2367, UL508

应用

  • Automation
  • Chemical, Oil & Gas
  • Pharmaceutical & Food
  • Power Engineering DC 24 V
  • 汽车生产

下载

Datasheet & Explanations
