Type: MPR10

~ 91 mm

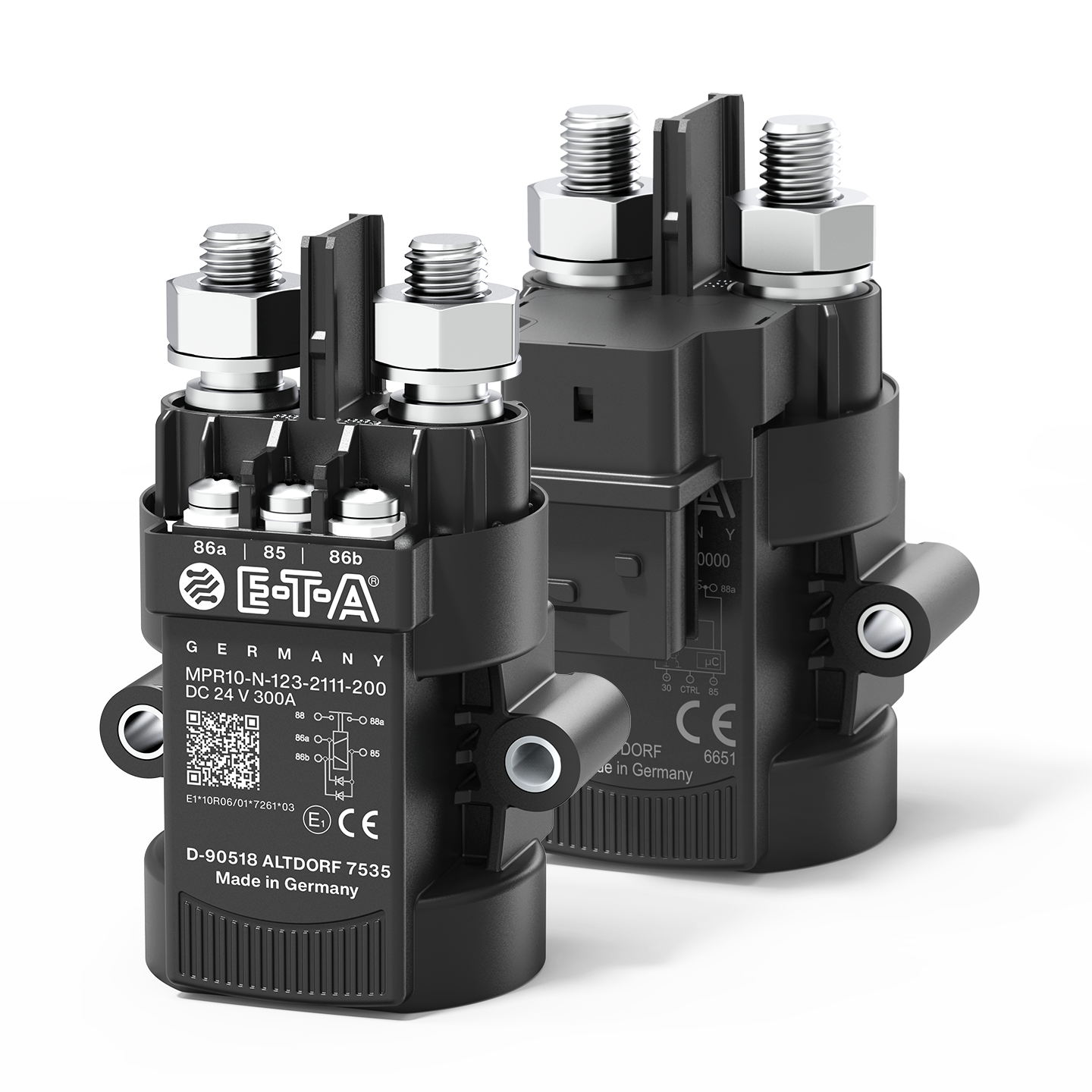

The single pole power relays MPR10 and HPR10 have been designed for switching high current loads and for disconnecting the battery from the on-board electrical system. The mechanical power relay type MPR10 is:

  • are energy saving and help to reduce the CO2 emissions
  • are ideally suitable for high loads
  • can easily be integrated into existing vehicle designs
  • can directly be used without any changes on the controlgear

The MPR10 is a bistable relay, i.e. a short current impulse is required only for the switching operation. The contact is then held in its position by permanent magnets without current.

NEW! Now also available with robust plug-in connector - compatible with the HDSCS connector series
NEW! Extension to 48 V in the load circuit

Saves time and costs

  • through quick and fault-free mounting
  • thanks to isolation of the control contacts from environmental influences
  • through high resistance against vibration and mechanical stress

技术参数

额定电压等级 DC 12 V
DC 24 V
DC 48 V
工作电压 DC 16...32 V
DC 9...16 V
持续电流 100 A
200 A
300 A
极数 1 极
负载回路物理隔离 1 (NO)
温度范围 -40° C … +85° C
接线端子 主回路端子M8 或者 M10
控制回路端子 M4 或HDSCS
安装方式 M4连接器底部及侧面
压缩安装孔
附加侧面法兰
附加底部法兰
设计 Cylindrical enclosure
特征 Mechanical power relay for harsh application conditions.

Extremely power saving due to a bistable drive, which only needs energy during switching operations.
触点类型 mechanical

应用

  • Automotive
  • Commercial Vehicles
  • Watercraft & RV
  • 叉车
  • 自动导引车(AGV)
  • 轨道车辆
