Type: SPR10-T

80 mm

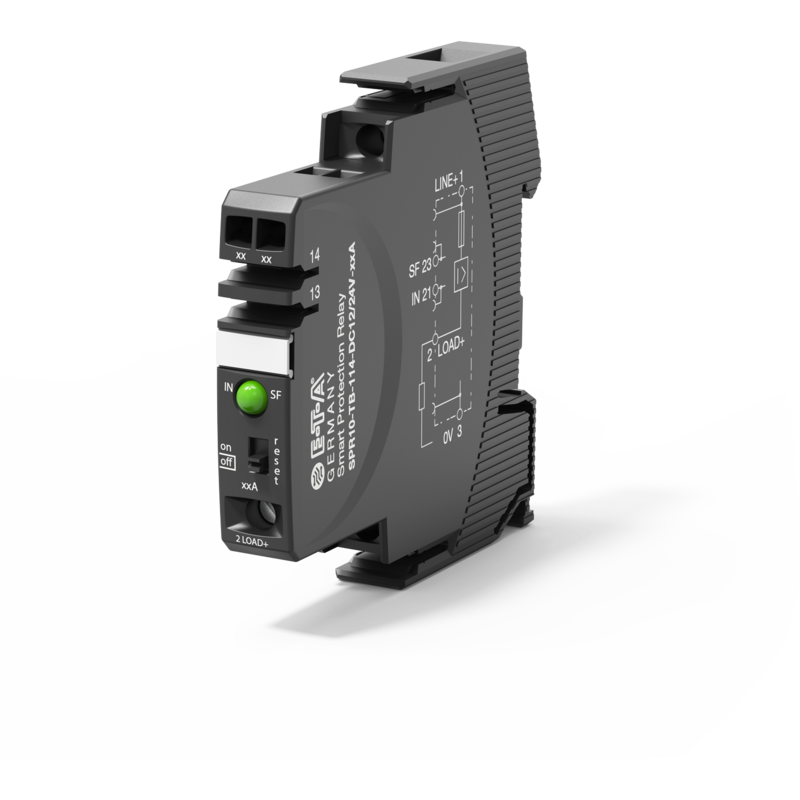

Typ SPR10-T von E-T-A: Erweitert die Produktgruppe “Elektronische Schutzschaltrelais“ für DC 12V und DC 24V Anwendungen.

The SPR10-T extends the product group of solid state remote power controllers for DC 12 V and DC 24 V applications.

It combines three functions in a single device with a width of only 12.5 mm:

  • Solid state relay with control input
  • Electronic overcurrent protection
  • Status signalling by means of LEDs and status output

The SPR10-T can directly be snapped onto symmetrical rails and offers quick and flexible mounting for groups of devices with several circuits.

For adjustment to the load conditions, the current rating is available in fixed values from 20 A to 25 A.

技术参数

额定电压等级 DC 12 V/DC 24 V
工作电压 DC 9...32 V
极数 1 极
信号输出 DC 24 V / max. 0,2 A
状态指示 1 LED, green/orange/red
温度范围 -25 °C…+60 °C
接线端子 screw terminals
Certificates UL 2367, UL 508, CSA C22.2 No. 14

附件

订货号 描述
AD-TX-EM01

配电模块

X 222 005 13

跳线

X 222 611 02

汇流排

X 222 611 22

汇流排 2组

X 222 611 34

汇流排 3组

X 222 611 47

汇流排 4组

X 222 611 59

汇流排 5组

X 222 611 97

汇流排 8组

X 222 611 12

汇流排 10组

X 210 589 01/02

汇流线-K10

01 = 2.5 mm2

黑色



02 = 1.5 mm2

棕色

X 222 005 01-03

信号汇流排

01 = 蓝色



02 = 红色



03 = 灰色

应用

  • (Steel industry)
  • Automation
  • Commercial Vehicles
  • 机械工程
  • 汽车生产
