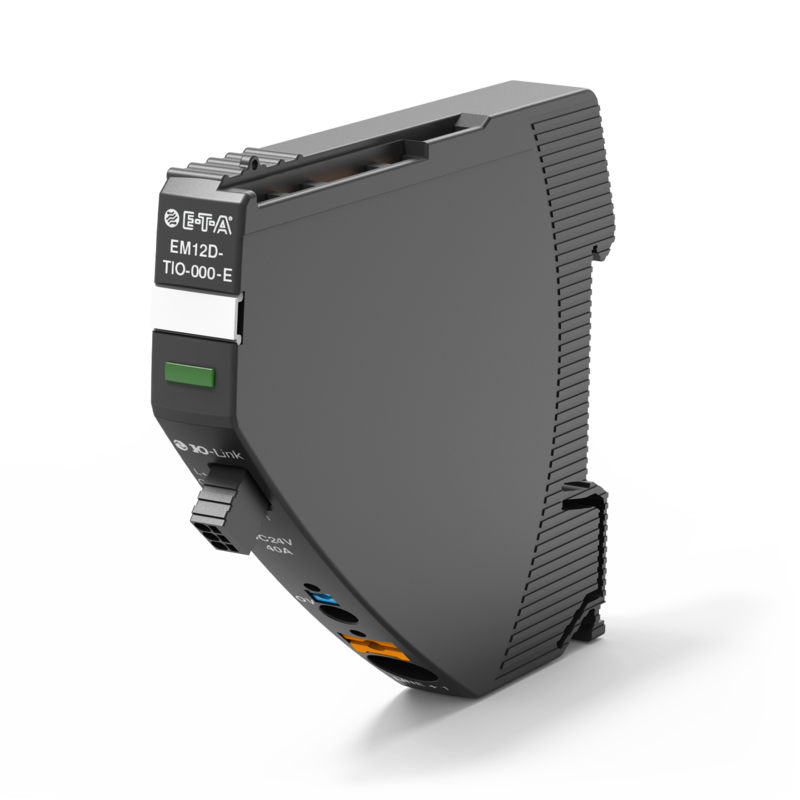

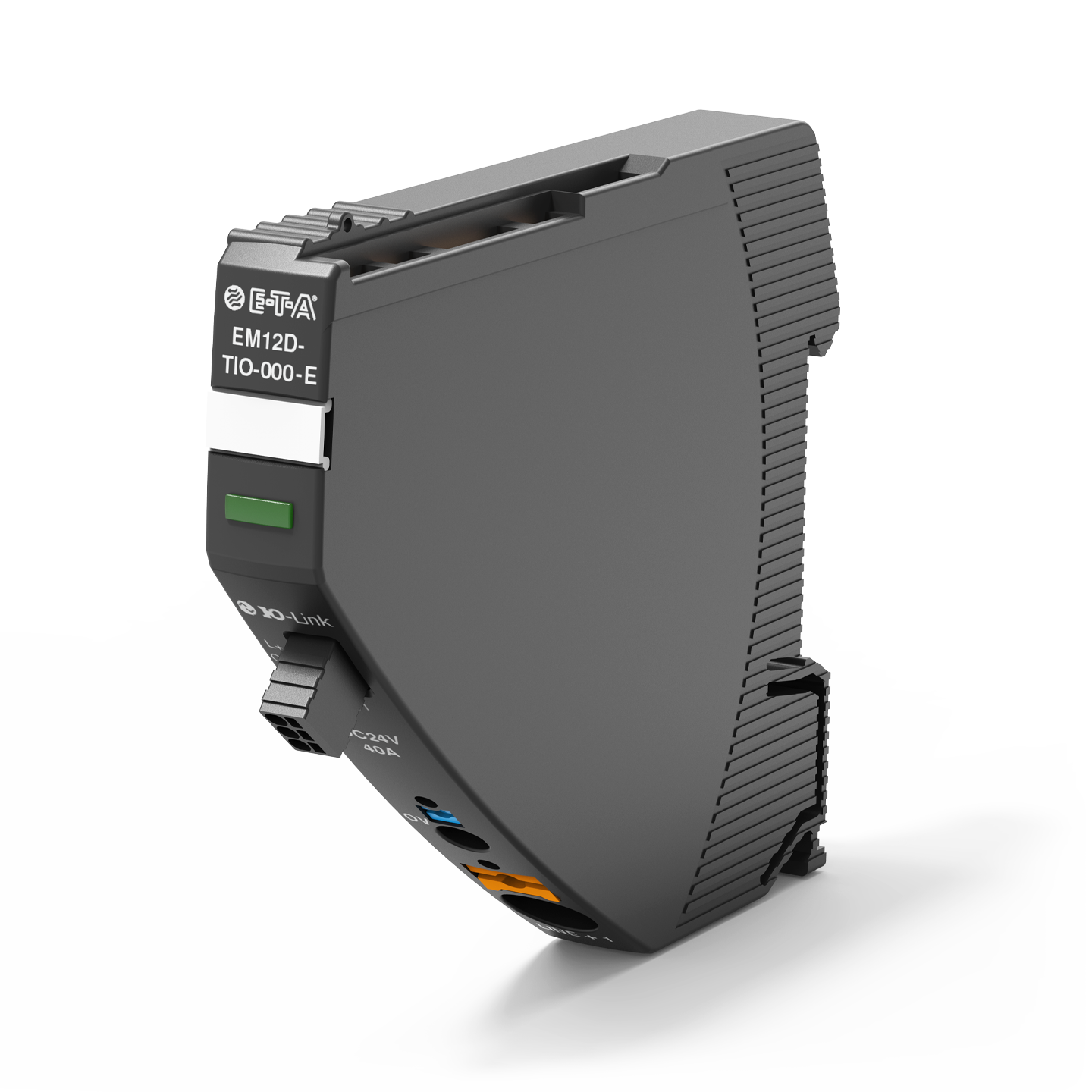

型号 EM12D-TIO
描述
EM12D-TIO 供电模块从脉冲开关电源单元获取直流 24 V 供电电压，并通过集成在 REX12D/REX22D 中的桥接臂，将其分配到所安装的智能线路保护器。EM12D-TIO 的通信接口为 IO-Link 接口，可向控制层的上级 IO-Link 主站发送多种诊断和控制指令。
应用
- 机械工程
- 自动化
- 过程控制
技术参数
| 额定电压 | ![CDATA[直流 24 V（18 至 30 V）]] |
|---|---|
| Bemessungsstrom | 最大 40 A |
| 环境温度 | -30 °C ... +60 °C |
| 安装方式 | 导轨安装 |
| 认证 | UL 2367, UL 1310 NEC Class2, UL 508 listed, CSA C22.2 No. 14, CSA C22.2 No. 107.1, UL 121201 (Class I, Division 2, Groups A, B, C, D), CSA C22.2 No. 213, ATEX 2014/34/EU, EN 60079-0, EN 60079-7, EN 60079-15, IEC 60079-0, IEC 60079-7, IEC 60079-15, EN IEC 60079-0, EN IEC 60079-7, EN IEC 60079-15, REACH, RoHS, CE, UKCA |
下载
- 數據表 4.3 MB
Declarations of conformity | 9
- EU Declaration of Comformity 409.8 KB
- EU Declaration of Conformity (ATEX) 157.1 KB
- ATEX Declaration of Comformity 932.4 KB
- UKEX Declaration of Conformity 168.6 KB
- RMI CMRT 1.7 MB
- RMI EMRT 1.8 MB
- Statement on per- and polyfluoroalkyl substances (PFAS) 180.1 KB
- REACH 267.2 KB
- TSCA Letter of Confirmation 244.1 KB
E-plan macros | 1
- REX12D-T PM12 3.8 MB
IODD | 11
- ETA-EM12D-TIO-000-E-20190311-IODD1.1.zip 151.2 KB
- ETA-EM12D-TIO-000-F-20181031-IODD1.1.zip 150.1 KB
- ETA-EM12D-TIO-000-H-20190308-IODD1.1.zip 149.8 KB
- ETA-EM12D-TIO-000-I-16-20200427-IODD1.1.zip 150.0 KB
- ETA-EM12D-TIO-000-I-116-20200427-IODD1.1.zip 154.5 KB
- ETA-EM12D-TIO-000-J-17-20201214-IODD1.1.zip 150.3 KB
- ETA-EM12D-TIO-000-J-117-20201217-IODD1.1.zip 154.9 KB
- ETA-EM12D-TIO-000-K-18-20220217-IODD1.1.zip 151.6 KB
- ETA-EM12D-TIO-000-K-118-20220217-IODD1.1.zip 156.2 KB
- ETA-EM12D-TIO-000-L-19-20230217-IODD1.1.zip 302.3 KB
- ETA-EM12D-TIO-20160714-IODD1.1.zip 149.4 KB
E-plan macros | 1
- REX12D-T 3.8 MB
